Design and construct the man-made environment to be in harmony with the natural environment.

Solar Work 2006-2007

Santa Fe Additions continued

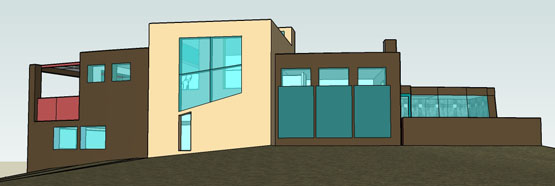

Here are some of the schematic versions of the Arc, the art studio/guest house/and growing greenhouse. As the interior plans evolved, exterior forms changed. All explore the use of direct gain and air collectors for heat storage.

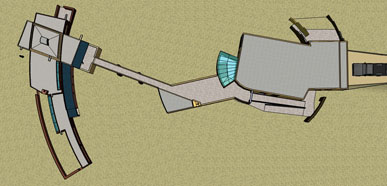

It was decided that the octagonal schemes were too competitive in scale with the main house, and that a more linear addition, maximizing the south face of the knoll, as well as an element providing western views, would work better and fit into the existing bare spots on the site. Conceptually these forms would be generated by the dome playing against the rectilinear elements and using the original color scheme to differentiate the two. A side benefit would be small semi-defined "courtyard" spaces between the pieces.

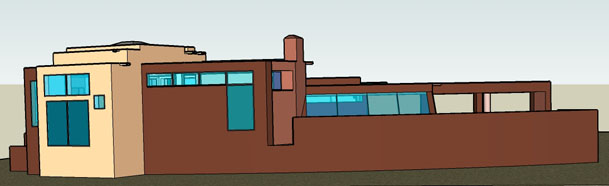

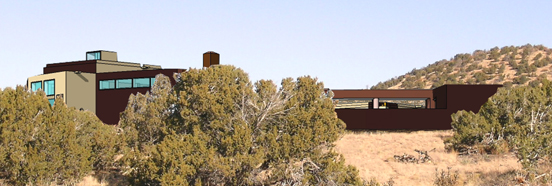

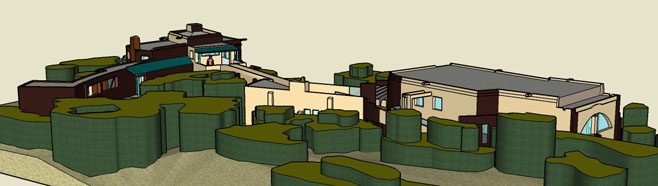

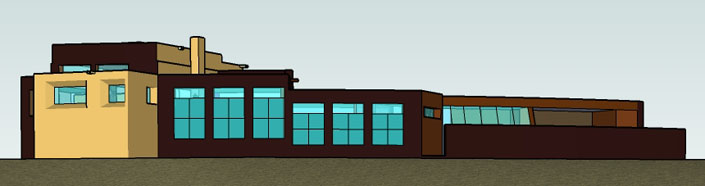

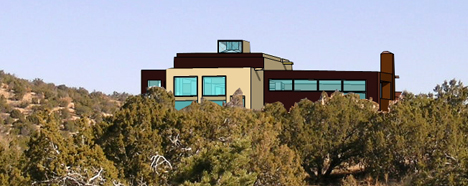

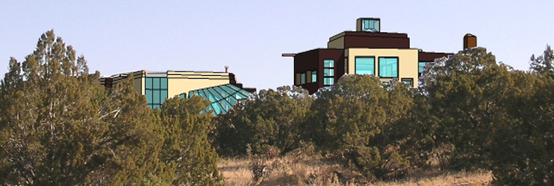

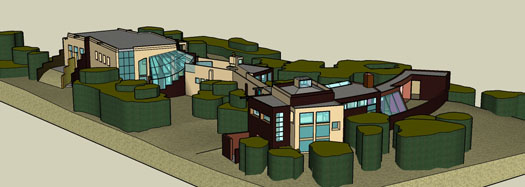

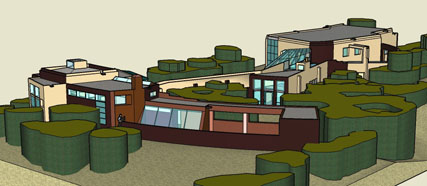

Below a set of variations of this idea were explored. A presentation was submitted to the design committee of the development for a conceptual approval. The digital model was shown with abstracted trees, and photo-montages of the model overlaid on photos taken of the site were made for the committee to see what the project would look like from the public road.



A leftover from the octagon schemes was the idea of the ramps, which while no longer providing a separate thermal zone and a gallery space, still had both the practicality of access and a way of moving from space to space which provides a different experience than that of staircases.

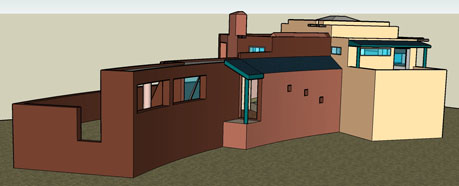

One design issues can be seen in these photos: how does the rectilinear element intersect with the radial element? In this first scheme both collide in a lantern over the cross-axis. Half of the surfaces are devoted to each element and are topped by a south facing monitor. Later this resolution was rethought.

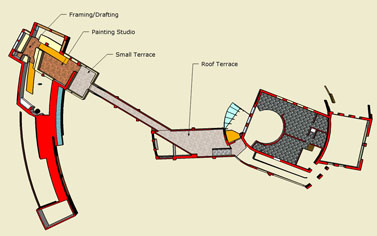

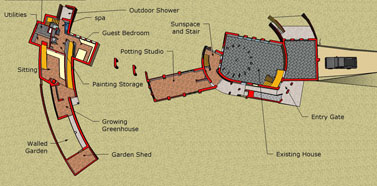

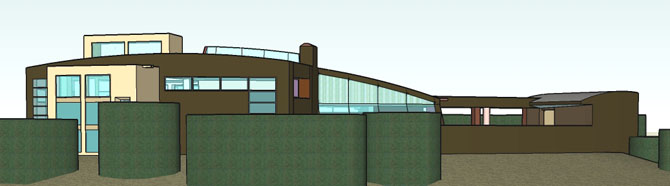

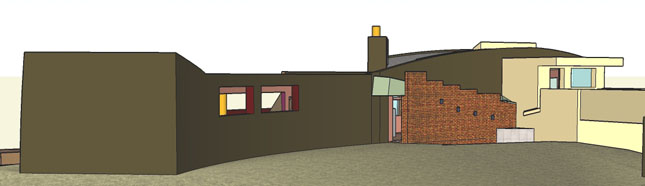

Here are some of the intermediate versions of the Arc schemes. As the interior plans evolved, exterior forms changed. All explore the use of direct gain and air collectors for heat storage.

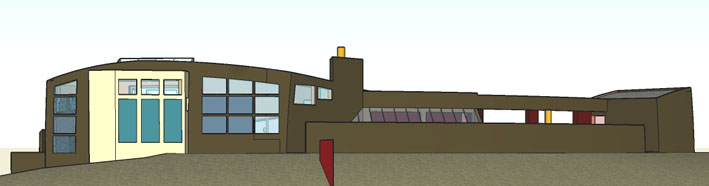

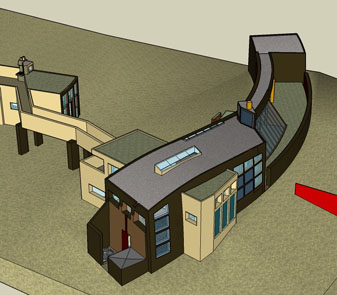

The important evolution of the Arc is the curved roof on the curved plan. The south wall also curves back one foot from bottom to top, softening it further and creating contrast to the rectilinear element which is now subservient and punches through the curve, readjusting the angle on the end to maximize solar collection. Roof water is now being collected in several places where it can easily be stored and used for flushing toilets, laundry, and growing food. The west end of the arc is higher than necessary and the skylights in the center are problematic for summer overheating, although summer venting will be powered by a west-facing, solar-thermal collector on the chimney. Small wall-washing skylights on the north of the roof will be replaced by south-facing monitors with mirrors, basically a vertical glazed extension of the wall. This will add to winter but not summer heat gain and bring diffused light to the north of the main space. The location of a large amount of photovoltaics is yet unclear in this scheme.

development of the Arc continues in 2008
